Custom Drawers in Jacksonville, FL

Custom drawer boxes are not one product, and durability varies more than price.

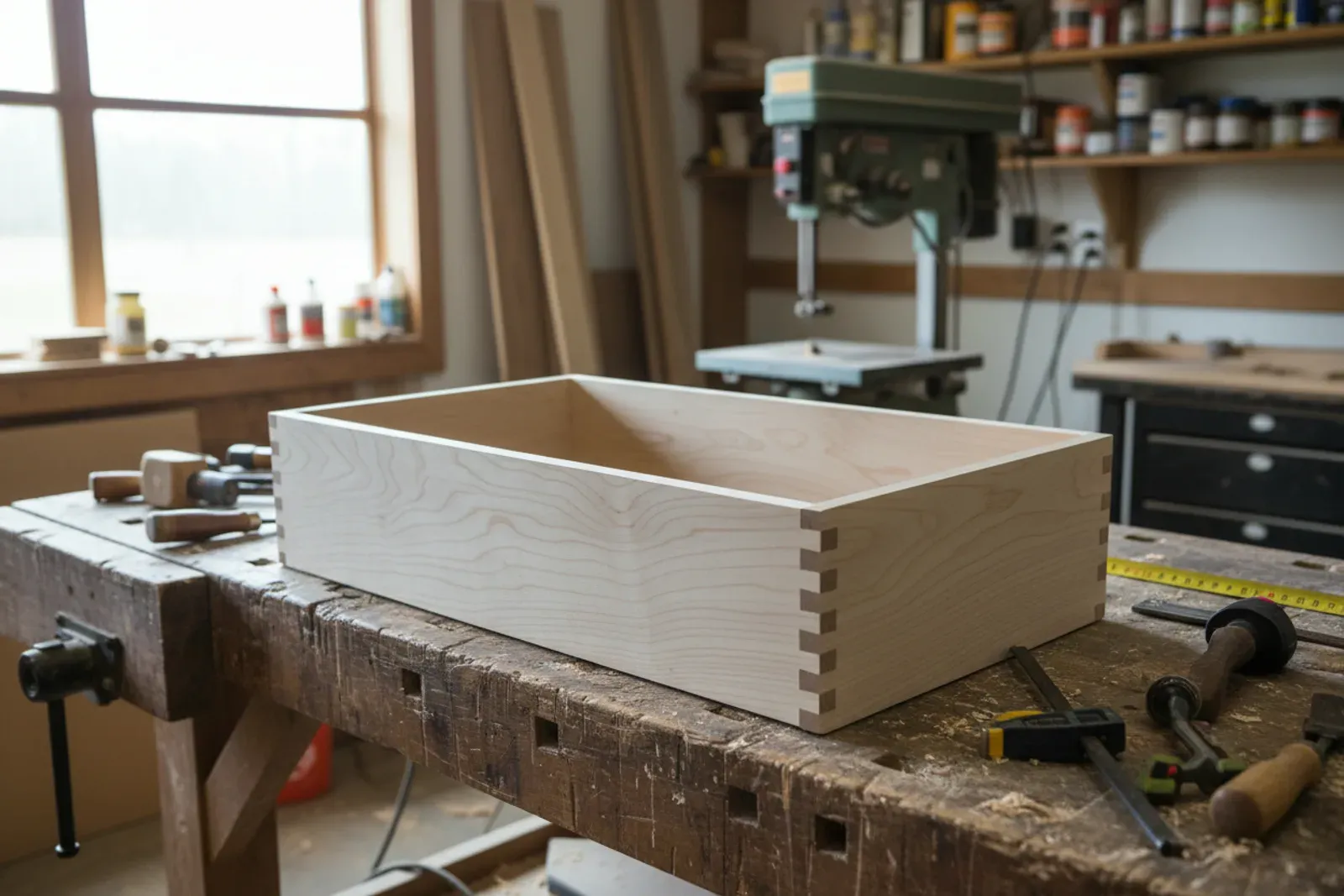

We build most boxes from 1/2 inch solid maple with a plywood bottom in a dado. For real weight we move to 5/8 inch sides, since a 36 inch pot drawer with 1/2 inch sides eventually racks.

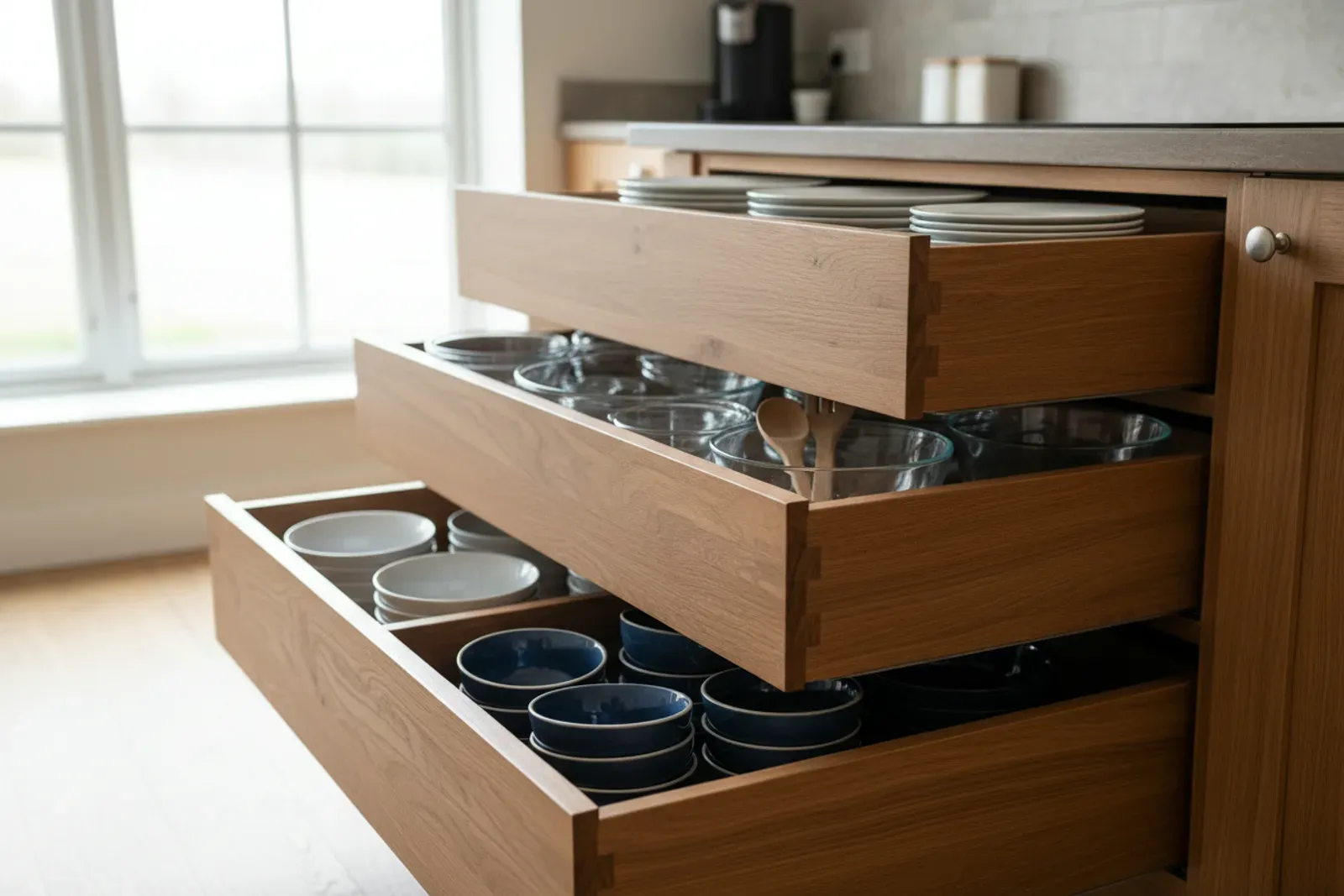

Dovetail drawers hold because of geometry, not glue. The angled tails lock the front to the sides against the force a drawer sees every time you pull it. A stapled butt joint resists that with fasteners alone: staples in particleboard loosen and you end up holding the drawer front.

In a humid house the joint matters more, because interlocked wood stays tight through seasonal movement rather than relying on a glue line.

Glides decide how a drawer feels. The box decides how long it lasts.

Undermounts earn their cost for reasons unrelated to rating: invisible hardware, and the full inside width instead of losing about 1 inch to side mounts. The tradeoff is precision, since the box must be cabinet opening minus 42 mm with depth matching the glide.

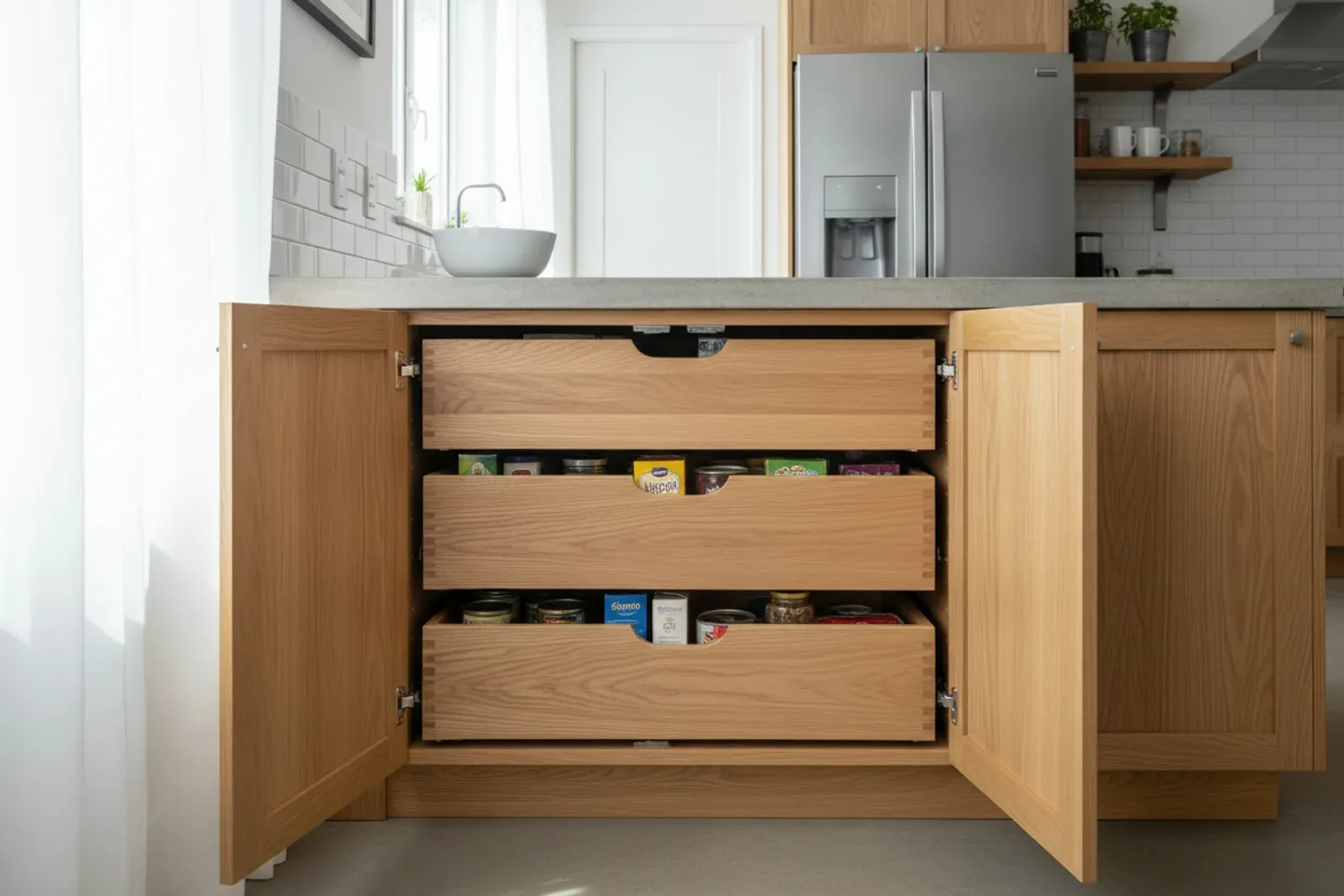

A drawer retrofit removes the fixed shelf in a base cabinet and installs a roll-out tray on glides, so you stop kneeling to find a pot. It is the most requested job here.

Frameless cabinets are easiest, since the opening is the full box width. Face frame cabinets need a cleat, losing about 1/2 inch per side. A center stile cuts usable width badly, and sometimes the right move is rebuilding the opening.

We measure the opening at three heights, because a 30 year old cabinet is rarely the same width top and bottom. Older Ortega and San Marco kitchens run out of square, so we shim the cleats. Two roll-outs in a 24 inch base is usual: a 5 to 6 inch tray over an 8 to 10 inch tray.

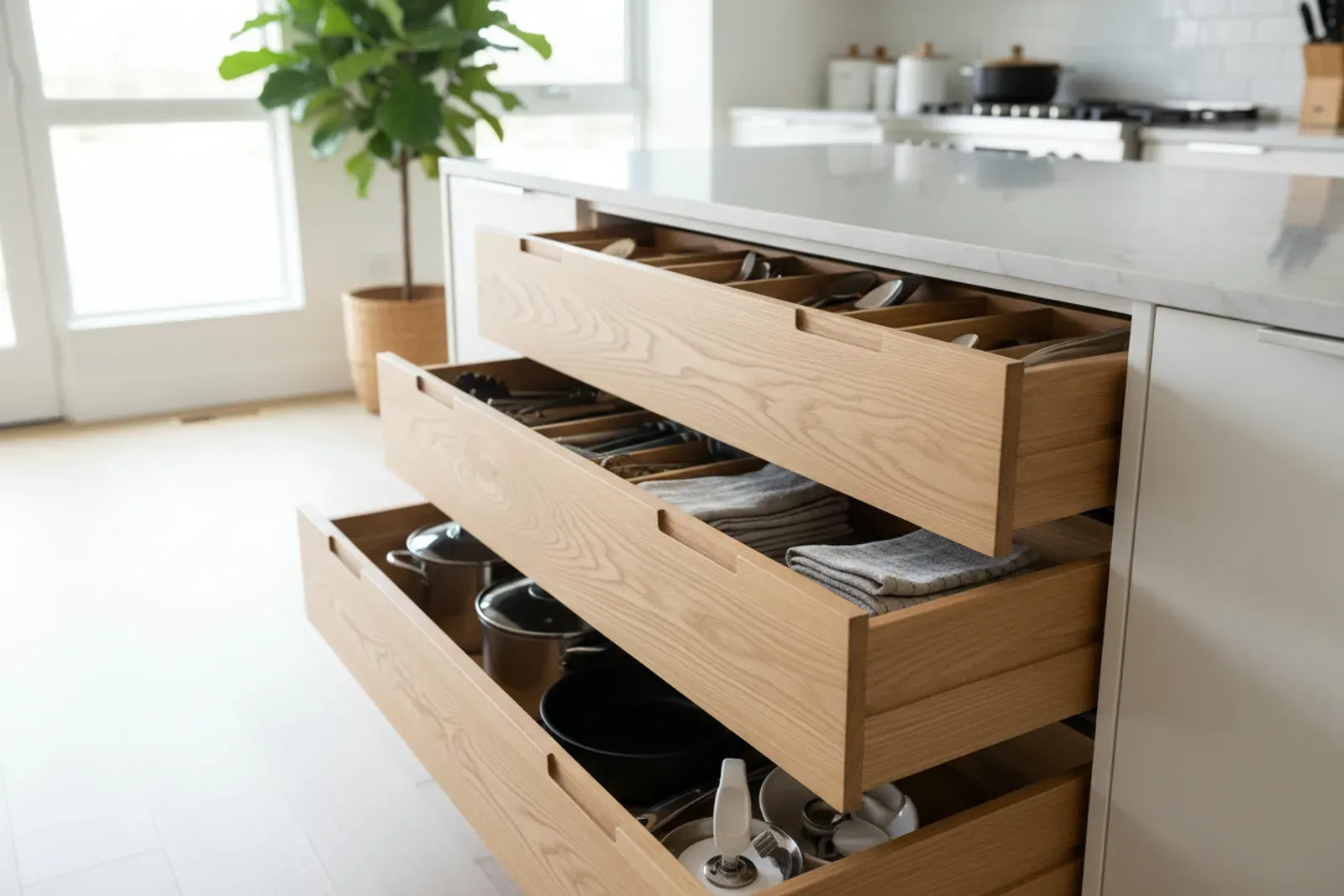

Deep drawers make a modern kitchen work, and heights get decided before the cabinets are built.

Standard base cabinets run 34.5 inches tall before countertop and 24 inches deep, giving roughly 31 inches of stackable drawer height. A three drawer stack lands near 6, 10 and 12 inches usable after rails and glide clearance.

Deep drawers need heavier glides. A 12 inch drawer in a 36 inch base loaded with cast iron passes 100 pounds, so cookware gets 100 to 150 pound hardware.

Drawer organizers are the cheapest part of the project and the part you touch daily.

We build wood dividers to the exact drawer, which beats a plastic tray leaving a 2 inch dead gap: knife blocks so blades lie flat, peg systems so plates cannot slide, angled spice inserts, dividers for sheet pans. For utensils, four uneven compartments beat six equal ones. Inserts run roughly $120 to $450 per drawer and can be added to drawers you own.

We open every cabinet and measure at several points, then write a scope naming box material, joint type, glide model and rating.

Boxes are built in our shop. A whole kitchen retrofit is usually one day, two if we rebuild openings. We test every drawer loaded, since a glide that feels fine empty can bind under 80 pounds.

Glide choice moves the price more than the box does, and face frame cabinets cost more to retrofit. These are typical Northeast Florida ranges rather than a quote, and an exact figure needs a look.
