Door and Window Casing in Jacksonville, FL

The profile is the trim shape in cross section. The reveal is the sliver of jamb left exposed, usually 3/16 to 1/4 inch, and it keeps the line crisp when a jamb sits proud of the wall.

Butt-and-block joints hold up better than miters over time, which is why craftsman trim ages well here. Size trim as a system: base taller than the casing is wide, crown molding scaled to the ceiling.

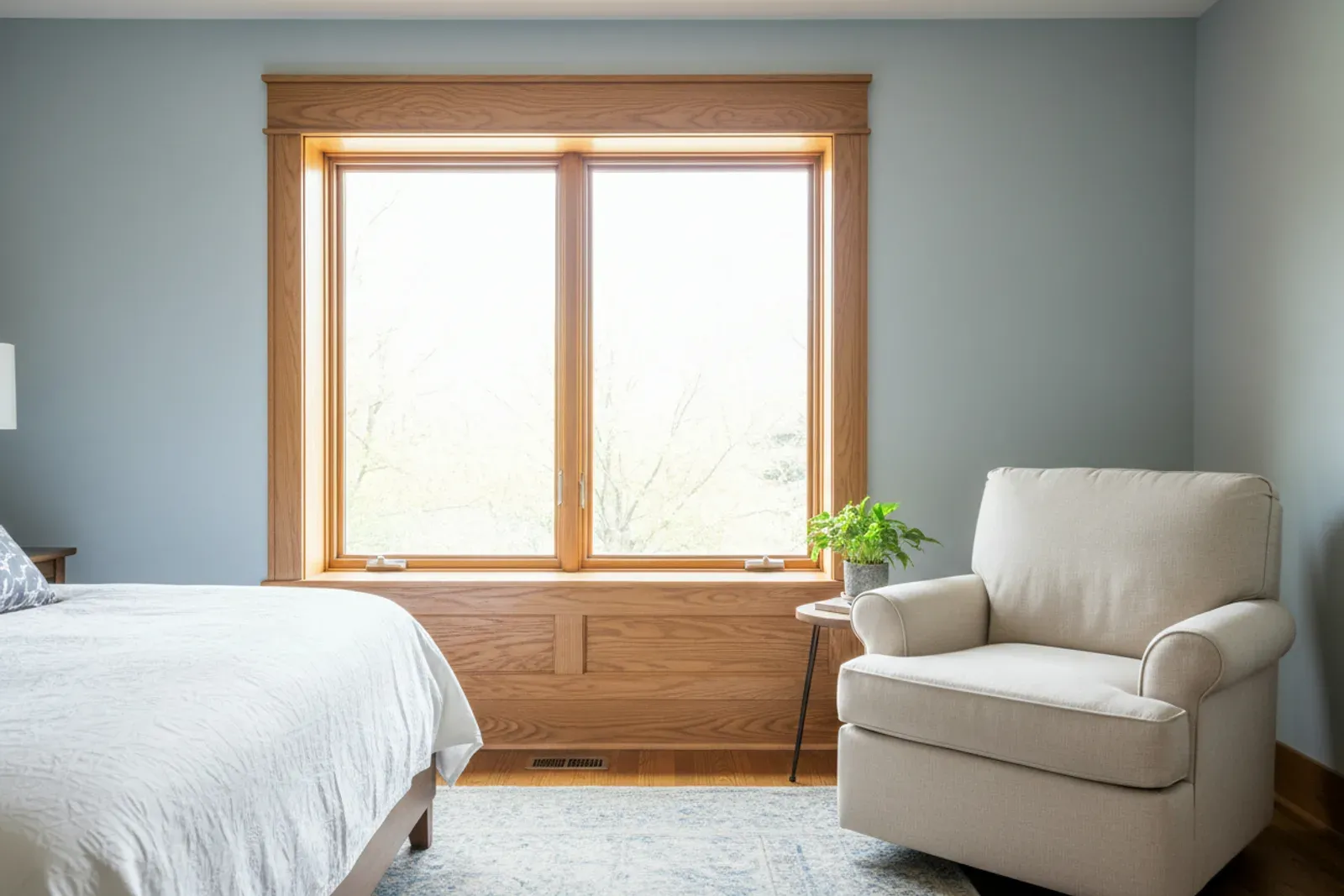

Craftsman window casing runs wide flat legs, a stool and apron below, and a head casing on top. With no miter to open up, movement shows as a hairline, not a gaping V.

A light version pairs 3 1/2 inch legs with a 4 1/2 inch head. The heavier version runs 5 1/2 inch legs with a stacked head and cap for tall front rooms. On a Riverside bungalow, craftsman casing is often what the house originally wore.

Window casing installation starts at the bottom. Set the stool level with horns past the legs, tuck the apron under, and every joint above falls into place.

Older Jacksonville openings are rarely square, so we check each with a level, shim the jamb, and cut a compensating angle rather than force a bad miter.

Door casing installation has one extra demand: the reveal must read the same on both sides, since from a hallway you see both at once. We mark reveals with a combination square, not by eye. With tall base, a plinth block gives the casing something to die into, sized alongside your baseboard installation.

This is where Jacksonville trim jobs go wrong. Finger-jointed pine is fine in a dry room. Put it near a bath or a window that sweats in August and the joints telegraph through paint within a year.

MDF is everywhere here because it is flat and takes paint well. We use it in dry bedrooms, never where a mop or condensation reaches the bottom of a leg.

Exterior door trim installation is a different problem in Atlantic Beach and Ponte Vedra, where salt settles on the paint film and speeds up coating failure.

We back-prime exterior casing on all six sides, cut ends included, since cut ends are how water gets in. We caulk with urethane, not builder acrylic, and leave a drainage gap at the bottom of each leg.

Historic neighborhoods carry profiles no big box store stocks. A 1925 San Marco house may have a 4 inch casing with an ogee nothing current matches, so we pull a cross section from a closet and match it.

Nocatee and Bartram Park want the opposite: flat stock, square edges, wider legs. Simpler, but tolerances are tighter with no ornament hiding a sloppy cut.

We walk the house, count openings, measure jamb depths, and note out-of-square conditions. You get a written quote naming profile and material.

Once approved, we order or mill stock and let it acclimate indoors before cutting. Install runs opening by opening: shim, mark reveals, glue and pin joints, fill, sand, caulk.

Three things move it: profile width, whether old trim must come off with patching after, and how square the openings are. These are typical ranges; an exact number requires seeing the space.
