Three different products get sold under one word. Laminate cabinet fabrication in Jacksonville, FL is part of the cabinetry we build for kitchens, garages and commercial spaces, and this page separates them.
High pressure laminate, thermofoil and melamine are not grades of one material. The wrong one in the wrong spot peels in two years.
The Florida detail that matters most: thermofoil comes apart at heat, so it is the wrong door beside a wall oven or a dishwasher vent.
People say laminate cabinets and mean any of the three. How each is made explains the rest.
Melamine, properly thermally fused laminate, is decorative paper fused onto particleboard or MDF, and the sheet arrives finished. High pressure laminate is its own sheet, kraft paper plus a decorative layer pressed hard, then glued to a substrate in the shop, so it is thicker and tougher. Thermofoil is vinyl film vacuum pressed over routed MDF.
| Product | Surface thickness | Heat tolerance | Repairable | Cost |
|---|---|---|---|---|
| Melamine | 0.005 to 0.008 in | Good | No | Lowest |
| High pressure laminate | 0.028 to 0.048 in | Very good | Edges | Moderate |
| Thermofoil | 0.010 to 0.018 in | Poor above 150F | No | Low to moderate |
Thermofoil cabinets fail by delamination at heat. The adhesive softens and the film lifts at an edge. It shows up beside a wall oven, under a cooktop, and next to a dishwasher vent, at sustained surface temperatures around 150 to 175 degrees.
That failure is not repairable, so the door gets replaced, and because color lots shift one door often will not match its neighbors.
Two cheap defenses: a heat barrier on the cabinet face by the oven cavity, and no longer propping the dishwasher open to vent.
Melamine cabinets fail at the substrate, not the surface. If water gets past a cut edge into particleboard, the board swells and never comes back flat, a real risk in a Jacksonville laundry room or a garage that hits 80 percent humidity in August.
Two standard fixes: moisture resistant substrate within splash range, and a banded edge on every cut. An unbanded bottom edge on a damp slab is how melamine dies here.

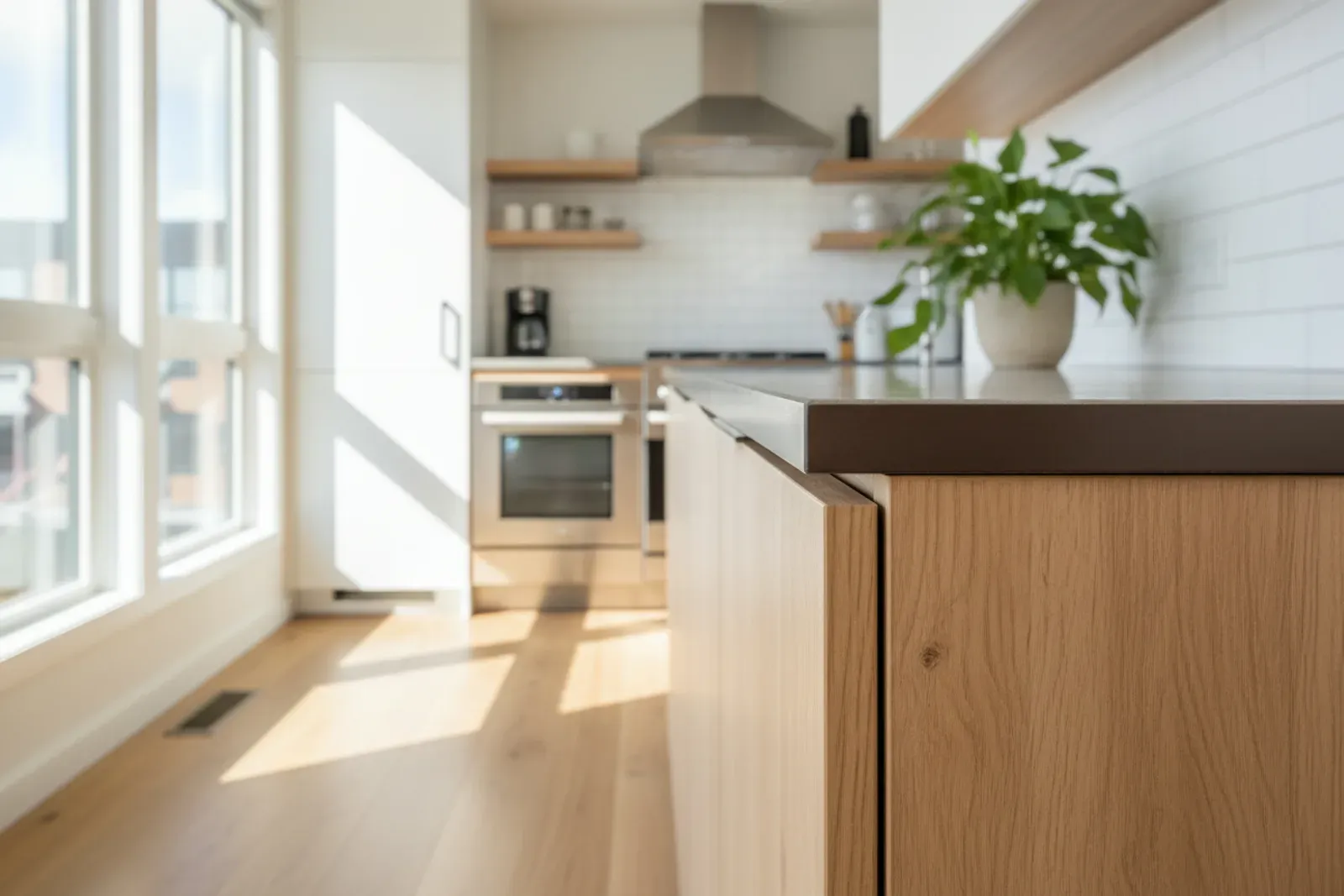

High pressure laminate cabinetry is only as good as its edges, and the edge is where laminate gives itself away. HPL shrugs off heat and water, then fails by chipping at an unprotected edge.
| Edge type | Thickness | Look and feel | Best use |
|---|---|---|---|
| Thin PVC tape | 0.4 to 0.5 mm | Flat, visible seam | Garage interiors |
| Thick PVC or ABS | 2 to 3 mm | Softer eased edge | Kitchens |
For anything that gets bumped we spec 2 mm or thicker. A 0.4 mm tape edge on a garage drawer front chips within a year.
Laminate cabinet doors get dismissed as budget, and in a formal kitchen they are the wrong look. In several Jacksonville rooms they beat wood.

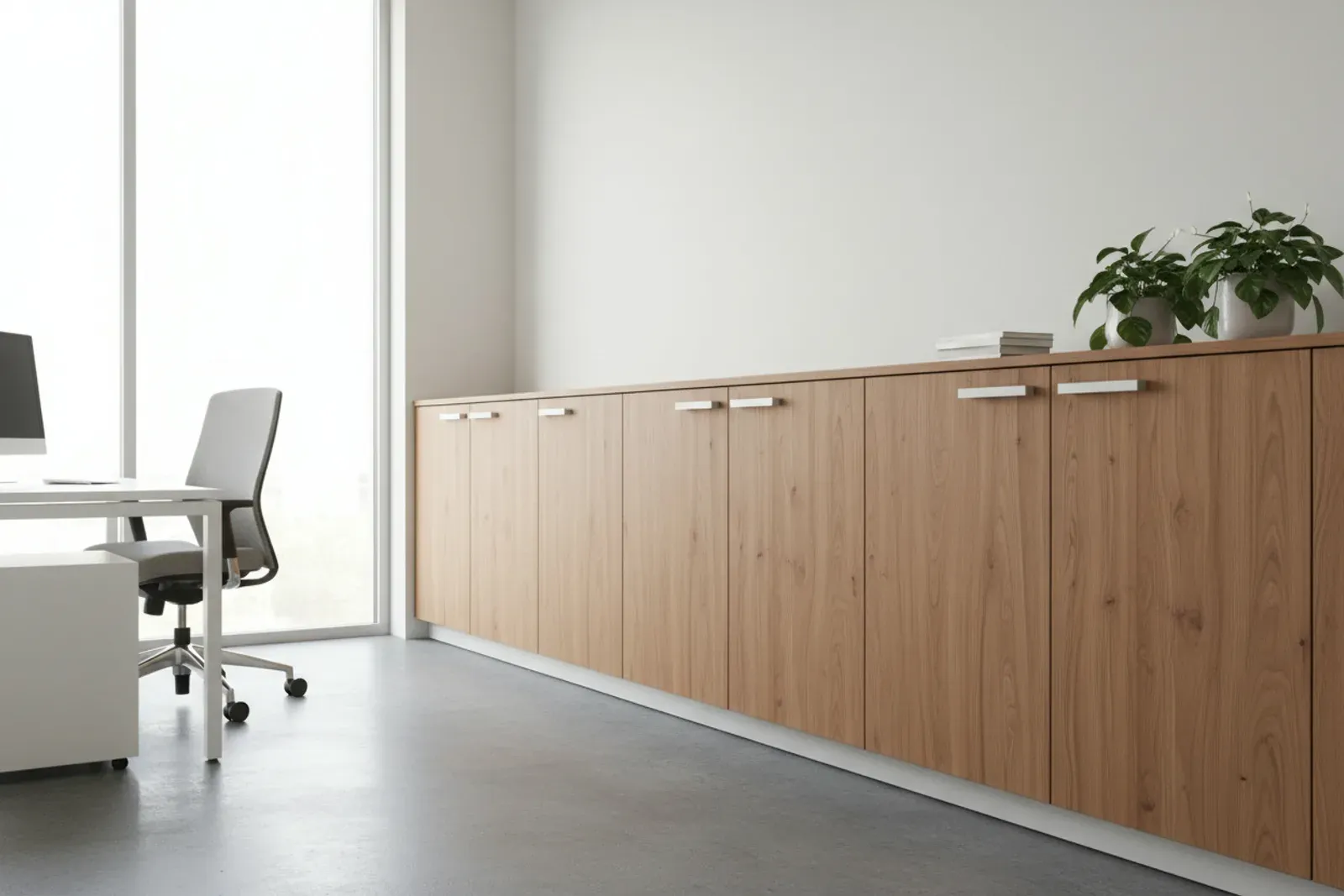

Garages are the clearest case: an unconditioned garage swings across a wide humidity range all year and painted wood eventually checks, which is how we build most garage cabinets. Laundry rooms are second, since laminate wipes clean of bleach, and our laundry room cabinets pair laminate interiors with painted fronts. Commercial casework is third, rentals fourth.
We steer people away from laminate in traditional kitchens, inset work, and rooms where a color change is likely, since laminate cannot be repainted the way wood can.
We measure the room, then draw the layout with the substrate and edge spec written on it, so you see what goes where.
In the shop, sheets are cut oversize, pressed or banded, then trimmed, and every cut edge is banded before a part leaves the bench. Thermofoil doors come from a supplier, since vacuum pressing is a specialty operation.
Install runs one to three days for a garage or laundry, and we scribe to the walls, which matters in older Arlington homes.
| Scope | Typical installed range |
|---|---|
| Melamine boxes, slab doors | $180 to $320 per linear foot |
| HPL faced, commercial grade | $320 to $550 per linear foot |
| Replacing thermofoil doors only | $90 to $220 per door |
Edge banding and hardware move the number more than the face material. These are typical Northeast Florida ranges rather than a quote, and an exact figure takes a measure.
4.8 ★
Klein Carpentry holds a 4.8 star average across 51 Google reviews. Homeowners keep mentioning the same things: fast replies, crews who show up when they say they will, and attention to detail. Every laminate cabinet fabrication project gets a written quote, a clear schedule and a daylight walkthrough at the end.
Humidity
Wood gains and loses moisture with the air around it, and the USDA Forest Products Laboratory's Wood Handbook shows how much it swells and shrinks as a result. We plan every laminate cabinet fabrication job for that movement: stable sheet goods, acclimated lumber, moisture-resistant material near slabs and wet rooms, and joints with room to move.
3 Heights
Jacksonville homes range from plaster and concrete block to square new construction. We measure each opening at the floor, mid height and ceiling before building, then scribe the finished work to the wall. Depending on the piece, it is built in our shop and brought in finished or built on site in your home, so the fit stays tight either way.
4.8from 51 Google reviews
We recently used Klein Carpentry to aid in the renovation of our home. Ray and his team installed new baseboards, wainscotting, window/door trim and crown molding to bring a major update to what was a builder grade interior. From the bidding to the final nail took about two months but the results were worth the wait. During the entire process, Ray was polite and passionate about his work while keeping the working area tidy at all times. I would highly recommend using Kline for any of your carpentry needs, you won't be disappointed!
Glenn Seagers · 2 years ago on Google
My husband and I had the pleasure of working with Klein Carpentry. We recently moved into our new home, and as most homeowners, we wanted to put our personal touch on it. Inspired by so many ideas from Pinterest and HGTV, like so many others, I had several ideas of how I envision what I wanted for our custom built-in. I spoke with Ray, who could also see my vision and transfer it to a 3D program for us to see visually. Well, I can't say enough of what a fantastic job both Ray and Nathan did. From the start of our project to the very end, they exceeded our expectations in every way possible. Words can't describe how their professionalism, commitment, and craftsmanship are genuine. Both Ray and Nathan are genuinely a pleasure to work with. They are two kind, sincere gentlemen who care about their work and the client's vision. They are punctual and reliable and went above and beyond to ensure that my built-ins were completed on time. With this said, we could not be happier with how they turned out. I can finally display my beautiful Disney collectible, which I had been put away for far too long. I highly recommend Klein Carpentry to anyone considering having any work done in theirs.
Laureen Rosario-Perez · 2 years ago on Google
I am thrilled to share my positive experience with Ray and Klein Carpentry. From start to finish, they exceeded my expectations in every way possible. Their professionalism and commitment to quality were evident from the moment they arrived, and they consistently delivered exceptional work throughout the entire project. One of the standout aspects of working with Ray and Klein Carpentry was their ability to accommodate my needs and desires. They took the time to truly understand what I wanted and went above and beyond to ensure that I was completely satisfied with the end result. Their attention to detail was impeccable, and they demonstrated an unwavering commitment to ensuring that every aspect of the project was completed to the highest possible standards. Ray and Nathan were an absolute pleasure to work with - not only were they skilled craftsmen, but they were also kind, funny, and genuine individuals who truly cared about ensuring that I was happy with their work. They were punctual, reliable, and always went the extra mile to ensure that the project was completed on time and within budget. The end result of their work was simply stunning - a beautiful 20-foot built-in shelving unit with crown molding, complemented by a gorgeous accent wall behind the TV. The craftsmanship and attention to detail were second to none, and I have received countless compliments on their work from friends and family. Overall, I would not hesitate to recommend Ray and Klein Carpentry to anyone in need of their services. They are true professionals who take pride in their work and go above and beyond to ensure that their clients are completely satisfied. If you want exceptional quality and unparalleled customer service, look no further than Ray and Klein Carpentry - they truly are the best in the business.
Sam Scholten · 3 years ago on Google
Reviews from Google
Heat softened the adhesive under the vinyl film. Once it lifts it cannot be reglued invisibly, so the fix is a new door plus a heat barrier inside the cabinet.
The faces will, better than painted wood. The risk is the substrate: a cut edge that stays wet swells permanently. We use moisture resistant substrate and keep boxes off the slab.
HPL faced cabinetry commonly runs 15 to 25 years and holds up in commercial use. Thermofoil is the short one, often 8 to 15 years, and less beside a heat source.
Not quite. Melamine is paper fused to the board, while high pressure laminate is a thicker separate sheet glued on afterward. HPL is tougher, so melamine goes on interiors and HPL on exposed faces.
Not reliably. Paint has nothing to bite into on a slick vinyl surface, and even with bonding primer it chips at the edges.
The strongest case for laminate.
Where wipe clean earns its keep.
For peeling thermofoil.
Built for hard use.
Commercial casework.
Everything we fabricate.
